Product Description

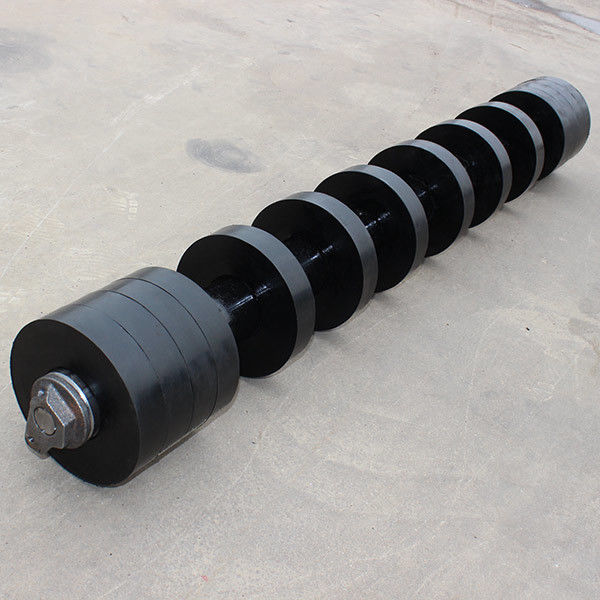

Black TD 75 Belt Conveyor Roller Low Cost Strong Versatility Metallurgy Belt Conveyor Roller

Safe operation and maintenance of TD75 series universal belt conveyor

The long-term normal operation of the conveyor is directly related to whether it is operated correctly and safely, and whether it is regularly maintained. Incorrect operation will cause equipment and personal accidents. The main cause of equipment accidents is that the material smashes the conveyor belt and deviates and tears the conveyor. band. The height of the blanking material must be minimized to reduce the impact of the material. When the height of the blanking material exceeds 1.2m, the material should not directly impact the surface of the conveyor belt when designing the guide trough and the feeding hopper. When conveying items mixed with large pieces of materials, they should pass through a special inclined grid before the materials reach the conveyor belt so that the powdery and small pieces of materials fall on the conveyor belt through the grid, while the bulk materials follow the grid.

Roll onto the conveyor belt that has been paved with small pieces of material to prevent large pieces of material from directly impacting the belt surface. The factors that cause deviation must be eliminated in time. The cause of personal accidents is usually cleaning or replacing parts and components when the conveyor belt is running. Therefore, adhere to the maintenance system is one of the important measures to avoid accidents. If there is a sidewalk behind the tail drum, a railing or guard should be set up on the side of the tail to prevent people from being accidentally caught by the conveyor belt. A protective fence should be set up under the heavy hammer block of the car-type tightening or vertical tightening device to prevent people from entering under the heavy hammer and causing danger. The conveyor should be stopped after unloading the materials on the belt as much as possible. It is advisable to start with no load. When multiple units are used in combination to form a transportation system, an electrical control system that opens and closes sequentially should also be programmed according to this requirement.

Technical parameter table of TD75 series belt conveyor:

Note:

1. The transportation capacity in the table is calculated under the conditions of material bulk density Q (t/s), horizontal transportation, and 30° roller groove angle. 2. DT.DI series conveyors are suitable for conveying various bulk materials such as bulk and granular materials with a bulk density of less than 1.2t/m3, and can also convey into pieces. DT.DⅡ series conveyors are suitable for conveying bulk bulk materials. 0.8-2.5t/m3 of bulk, granular and other bulk materials can also be transported into pieces.
