Detail Information

Highlight:

Anti Impact Polyester Conveyor Belts

,

Water Resistant Polyester Conveyor Belts

Product Description

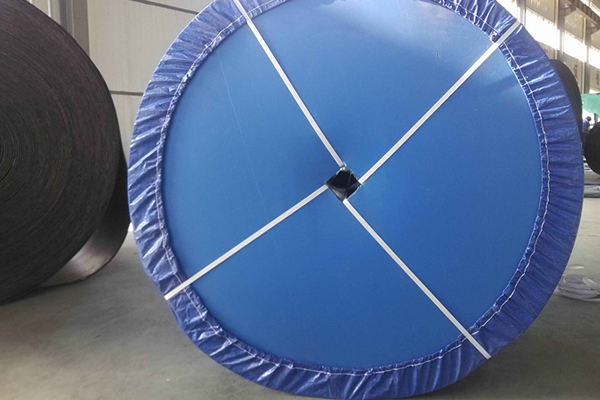

EP Conveyor Belt

EP Conveyor Belt

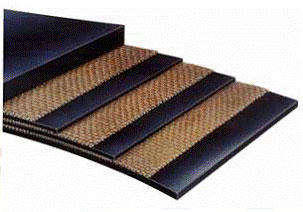

EP Conveyor Belts, also called Polyester conveyor belts, whose tension resistant body is canvas woven by polyester in warp and nylon in weft.The belts have the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet strength.

EP Conveyor Belt

Feature

1. Good elasticity, anti-impact
2. High adhesion, good flexing capacity
3. Good trough ability
4. Better stability of size and heat-resistance
5. Good water-proof ability
6. Little change in strength under dry or wet conditions


Standards

GB/T7984-2001, DIN22102,BS490, AS1332, RMA, JISK6322, SABS1173 etc

EP Conveyor Belt EP Conveyor Belt


Specifications

Fabric Material Fabric structure Fabric code No.of fabric plies Width
mm
Length
m
Cover thickness mm
Warp Weft
Top Bottom
Polyester canvas Polyester Nylon of
Polyester
EP100 2-10 350-2000 10-400 2-12 1-5
EP150 2-10 350-2000 10-400 2-12 1-5
EP200 2-10 350-2000 10-400 2-12 1-5
EP250 2-10 350-2000 10-400 2-12 1-5
EP300 2-6 350-2000 10-400 2-12 1-5
EP400 2-6 350-2000 10-400 2-12 1-5
EP500 2-6 350-2000 10-400 2-12 1-5
EP600 2-4 350-2000 10-400 2-12
