Detail Information

Highlight:

DTII A Belt Conveyor System

,

315kw Belt Conveyor System

Product Description

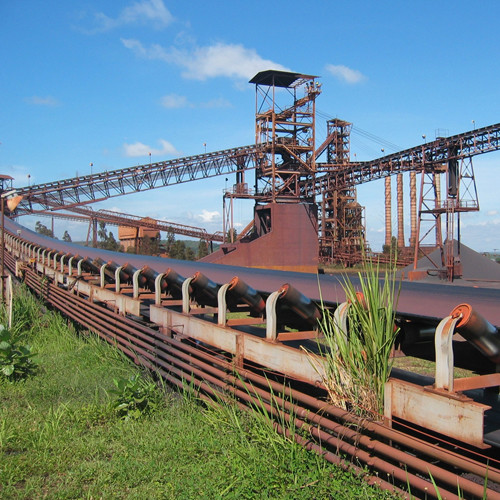

DTII A Belt Conveyor





DT II A belt Conveyor is a new model based on DT II’s design advantage plus innovation and development, It is a very mature and widely used model, especially for long-distance, large capacity, high-speed belt heavy delivery. DT II A Conveyor is used widely in metallurgy, mine, building, transportation and harbour industries used to convey scattered and block materials.
We can design the system to meet your requirements,your any inquiry is highly appreciated.



Parameter

Belt width
(mm)
Drive Pulley φ
(mm)
Turnaround Pulley φ
(mm)
Idler φ(mm) Main motor
Power Range Voltage Range
500 500 250~500 89


2.2kw
~
315kw




Power is less than 200 kw to 380 v;

Power more than 220 kw for 3 kv or 6 kv;
650 500~630 250~630 89~108
800 500~1000 250~1000 89~159
1000 630~1600 250~1600 108~159
1200 630~1600 250~1600 108~159
1400 630~1600 315~1600 108~159
1600 630~1600 400~1600 133~194
1800 630~1600 400~1600 133~194
2000 800~1600 500~1600 133~194
2200 1000~1600 630~1600 159~219
2400 1000~1600 800~1600 159~219
