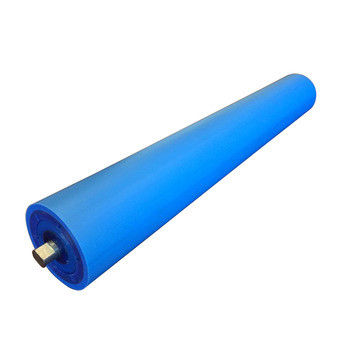

Dia 300mm HDPE Conveyor Rollers For High Tonnage Applications

Brand Name:	HUAMEI

Detail Information
Name:	HDPE Roller	Diameters:	127—300mm
Roll Lengths:	150—2200mm	Bearing Sizes:	6306 To 6310
Highlight:	Dia 300mm HDPE Conveyor Rollers , Dia 127mm HDPE Conveyor Rollers , High Tonnage Applications HDPE Roller

Product Description

HDPE roller

SERIES	DIAMETER (mm)	SHELL WALL (mm)	NOMINAL SHAFT DIAMETER (mm)	BEARING PART NO.	MIN BEARING DYNAMIC LOAD RATING (N)
20	127	3.5 + 6.5	20	6204 – 2RS	12 700
25	127	3.5 + 6.5	25	6205 – 2RS	14 000
	152	4 + 6.5
	159	4 + 10
27	127	3.5 + 6.5	25	6305 – 2RS	22 500
	133	3.5 + 9.5
	152	4 + 6.5
	159	4 + 10
32	127	3.5 + 6.5	30	6306 – 2RS	28 100
	133	3.5 + 9.5
	152	4 + 6.5
	159	4 + 10
	178	4 + 6.5
35	152	6 + 6.5	35	6307 – 2RS	33 200
	159	6 + 10
	178	6 + 6.5
40	152	6 + 6.5	40	6308 – 2RS	41 000
	159	6 + 10
	178	6 + 6.5
	193	6 + 7.5
	219	6 + 13
45	178	6 + 6.5	45	6309 – 2RS	52 700
45	193	6 + 7.5	45	6309 – 2RS	52 700
50	193	6 + 7.5	50	6310 – 2RS	61 800

For use in low-noise applications, each HDPE roller combines the strength of Lorbrand’s standard welded steel body with the non-stick properties of a high-density polyethylene sleeve.

These rollers are so quiet that at belt speeds below 3 m/s, the running belt can barely be heard. This combination makes them strong, lightweight and suitable for high tonnage applications and conveyor belt systems greater than 1600mm wide.

Key Aspects

Diameters – 127—300mm
Roll Lengths – 150—2200mm
TIR – Typically less than 0.3mm at roll ends
Noise – Typically 5—10 dBA less than their steel equivalent
Bearing Sizes – 6306 to 6310
Material Specifications – High-grade HDPE as well as ultra-high-molecular-weight polyethylene (UHMWPE)
