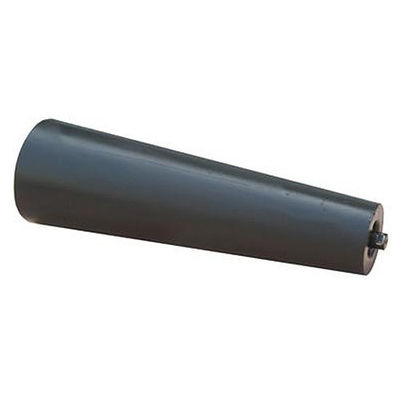

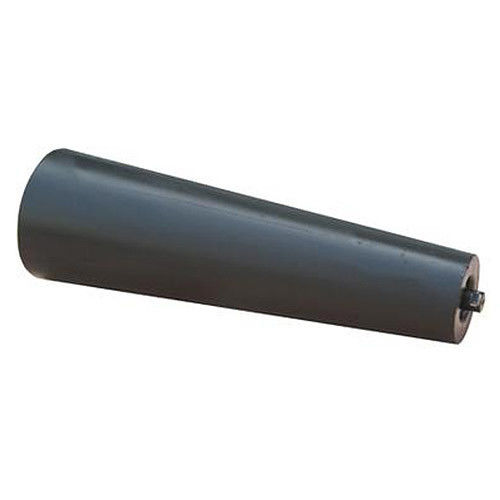

Labyrinth Seal Dia 108mm 1400mm Tapered Conveyor Rollers

Brand Name:	HUAMEI

Detail Information
Name:	Tapered Conveyor Rollers	Length (mm):	170-1400
Bearing:	204 205	Advantage:	Running Steady, Stay In Grade
Highlight:	1400mm Tapered Conveyor Rollers , Dia 108mm Tapered Conveyor Rollers , labyrinth seal Taper Roller

Product Description

Taper roller

Description	Conveyor Tapered Roller for Conveyor Belt System
Application	Used in electric power, metallurgy,mine,coal, cement,steel, chemical, port, hydroelectric power and grain industries
Pipe/Tube/Shell	1) Material:Q235 steel 2) Diameter:89-194mm 3) Length:170-1400mm
Shaft/Axis	Material:#45 Steel
Bearing	Ball bearing
Bearing House	ST14(DIN)
Grease	Lithium soap type grease
Seal	labyrinth seal
Surface	Smooth surface
Color	Black,red,grey,green etc
Service life	More than 30,000 hours
Standard	GB,ISO,DIN,CEMA,JIS

Parameter of Conveyor Tapered Roller for Conveyor Belt System:

Name	Belt width (mm)	Standard diameter(mm)		Length (mm)	bearings
Name	Belt width (mm)	One side	The other side	Length (mm)	Type (min-max)	QTY (pcs)
Taper training idler	800	89	133	170-1400	204	2
	1000	108	159	170-1400	204 205	2
	1200	108	176	170-1400	204 205	2
	1200	133	194	170-1400	204 205	2
	1400	108	176	170-1400	204 205	2
	1400	133	194	170-1400	204 205	2

What's the advantage of your Conveyor Tapered Roller for Conveyor Belt System?

(1) Running steady, stay in grade.
(2) Small radial runout, long life time.
(3) Diversified bearing housing for user choose.
(4) Labyrinth seal can prevent dust and water from entering.
(5) High precise steel pipe guarantee the low shaking and low noise of the roller.
