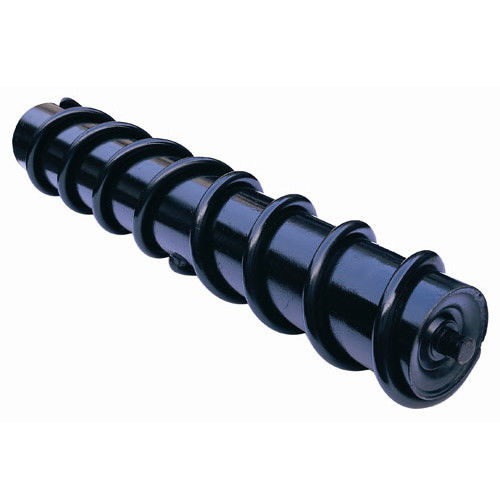

Leak Proof Dia 219mm Spiral Conveyor Rollers

Brand Name: HUAMEI

Detail Information

Name: Spiral Roller Dia: From 63.5mm To 219mm
Feature: Leak-proof Standard: ISO/CE/BV
High Light:

Dia 219mm Spiral Conveyor Rollers

,

Dia 63.5mm Spiral Conveyor Rollers

,

min 150mm spiral roller

Product Description

Spiral roller


Spiral roller Description of the products:

1. Dia from 63.5mm to 219mm
2. Leak-proof high
3. Stable running, long life
4. Less resistance
5. ISO/CE/BV certification
spiral roller Features:
1) Steady running, reliable quality and reduce maintenance;
2) Less movement longitudinally, rotating smoothly, extends the life span;
3) Various bearing housing and sealing structure are available for the customer's choice;
4) Multi pass labyrinthine sealing, preventing the mixed dirt and water immersed;



Specifications:

Standard Diameter Length scope(mm) Bearings Type(Min-Max) Idler’s Shell Wall Thinkness
mm Inch
63.5 21/2 150-3500 204 3.0mm-3.75mm
76 3 150-3500 204 205 3.0mm-4.0mm
89 31/3 150-3500 204 205 3.0mm-4.0mm
102 4 150-3500 204 205 305 3.5mm-4.0mm
108 41/4 150-3500 204 205 305 306 3.5mm-4.0mm
114 41/2 150-3500 204 205 305 306 3.5mm-4.5mm
127 5 150-3500 204 205 305 306 3.5mm-4.5mm
133 51/4 150-3500 204 206 207 305 306 3.5mm-4.5mm
140 51/2 150-3500 204 206 207 305 306 3.5mm-4.5mm
152 6 150-3500 204 206 207 305 306 307 308 4.0mm-4.5mm
159 61/4 150-3500 204 206 207 305 306 307 308 4.0mm-4.5mm
165 61/2 150-3500 207 305 306 307 308 4.5mm-6.0mm
177.8 7 150-3500 207 306 307 308 309 4.5mm-6.0mm
190.7 71/2 150-3500 207 306 307 308 309 4.5mm-6.0mm
194 75/8 150-3500 207 307 308 309 310 4.5mm-6.0mm
219 85/8 150-3500 308 309 310 4.5mm-6.0mm
