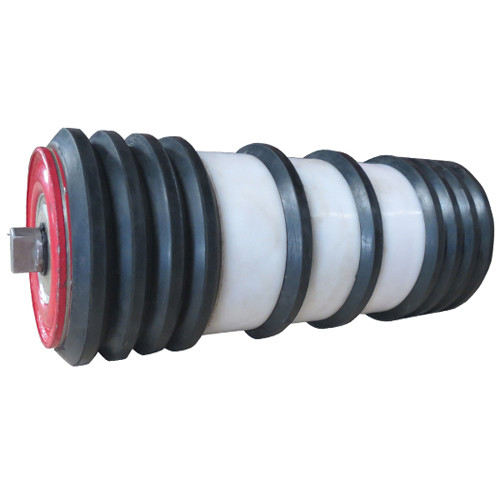

Lightweight Low Wear Coefficient Combo Roller

Brand Name:	HUAMEI

Detail Information

Highlight:

Low Wear Coefficient Combo Roller

Dia16mm combo roller

Dia800mm idler roller

Product Description

Combo roller

Comb Idler used in acid and alkali resistant industry of conveyor, comb idlers can replace the metal roller , nylon roller , long life , easy installation , custom center smooth transportation , reduce conveyor belt deviation and protection conveyor belts and other characteristics .

Feature:

Comb idler superior performance than traditional iron roller , low wear coefficient , the proportion of small , light weight , easy to replace , and the low noise , smooth operation , more suitable for the working environment of the production conditions , high service life.

Specification:

Roller Dia	Shaft Dia	Tube Thickness	Roller Length	Tube structure	Surface treatment	Erecting structure
16	6	1.2,1.5	50-1500	PVC, Coat rubber, Carbon steel, Stainless steel, Aluminium alloy	galvanization Chrome plate Skin glue plastic injection	A.spring shaft b.mandrel shaft c.inside thread shaft d.outside thread shaft e.oblate tenon shaft f.semicircular tenon shaft
20	8	1.5,2.0	50-1500
25	8,10	1.5,2.0	50-1500
30	8,10	1.5,2.0	50-1500
32	10,12	1.5,2.0	50-1500
38	10,12	1.5,2.0	50-1500
50	12	1.5,2.0	50-1500
60	12,15	1.5,2.0	50-1500
76	15,20	2.5,3.0	80-1500
89	20,25	3.0,4.0	80-1500
108	25,30	3.5,4.0	100-1500	Coat rubber, Carbon steel, Stainless steel
127	30,35	4.0,4.5	200-1500
152	35,40	4.0,5.0	200-1500
159	40,45	5.0,6.0	200-1500
200	50,60	5.0,6.0	200-1500
500	80	8.0,10.0	200-1500
800	100	10.0,12.0	200-1500
